Description
Description

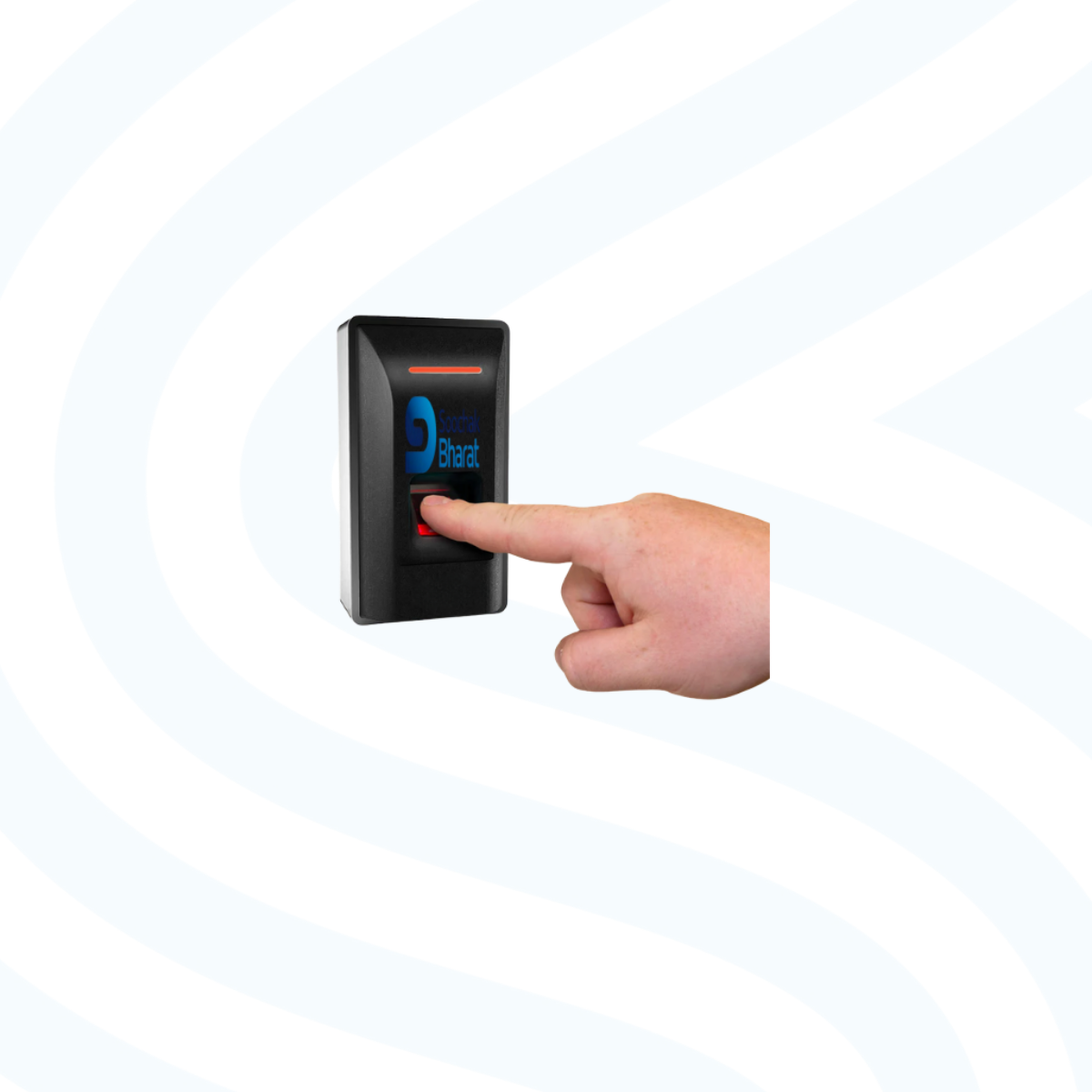

SBBM-USB25 is a Compact biometric reader with BLE and USB connectivity, built-in lithium battery, and anti-spoofing technology. Designed for mobile and desktop environments across Android, iOS, and Windows platforms. Its capacitive sensor and leather-textured surface ensure accurate and secure fingerprint capture for attendance and identity systems.
Features & Benefits :
- Dual BLE and USB/Micro-USB connectivity for wide compatibility
- Built-in 3.7V rechargeable lithium battery (1000mAh) for portable use
- Fast fingerprint verification in under 1 second
- Capacitive sensor with 508 DPI, 12.8mm × 18mm sensing area
- Live finger detection with leather anti-spoof coating
- Stores up to 1000 fingerprint templates
- High security: FAR ≤ 0.0001%, FRR ≤ 0.01%
- Anti-static protection up to 15kV (IEC6100-4-2 standard)
- Supports ISO, ANSI, JPG, WSQ image formats
- Reads Mi fare & NFC cards (13.56 MHz); custom options available
- Compatible with Android, iOS, Windows, Linux 32-bit
Applications :
- Employee time and attendance tracking
- Secure access control for mobile workstations
- Identity verification at point-of-sale systems
- Patient check-in in healthcare environments
- Visitor management in office or school lobbies
Technical Specifications
Technical Specifications
| Physical Parameter | |
|---|---|
| Dimensions (in mm) | 225mm X 225mm X 55mm |
| Colour | White |
| Weight | 0.85 Kg approx. |
| Packaging Material | ABS Plastic |
| Protection Level | IP65 |
| UHF Technical Parameters | |
| Communication | BLE and USB/ Micro-USB |
| Working voltage | Built-in 3.7V lithium battery (1000maH) |
| OS< | Android and Windows, IOS, Linux 32 |
| Fingerprint Collection | Rejects Fake fingers, Does Live Scan |
| Fingerprint Sensor Capacity | 1000 Templets |
| FRR | 0.01% |
| FAR | 0.0001% |
| Fingerprint Verification Time | <1 s |
| Fingerprint Sensor | Capacitive Sensor 12.8mm*18mm imaging area 256*360-pixel array 508 DPI, 8 bits per pixel |
| Anti-static electric capacity | IEC6100-4-2 standard 15KV |
| Image Format | Support ISO, ANSI template standard, & JPG, WSQ image |
| Supporting Cards | Mi fare card (13.56MHz card), NFC type A card, another required card can be customized. |
| Environmental parameters | |
| Operating Temperature | -20°C to +70°C |
| Operating Voltage | DC, 9-32 V |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 10％ to 95% RH No condensation |
Specs Sheet
Specs Sheet
| Sr. No. | Type | Description | Download |
|---|---|---|---|
| 1 | Datasheet | Google Drive link | Download Pdf |
