Description

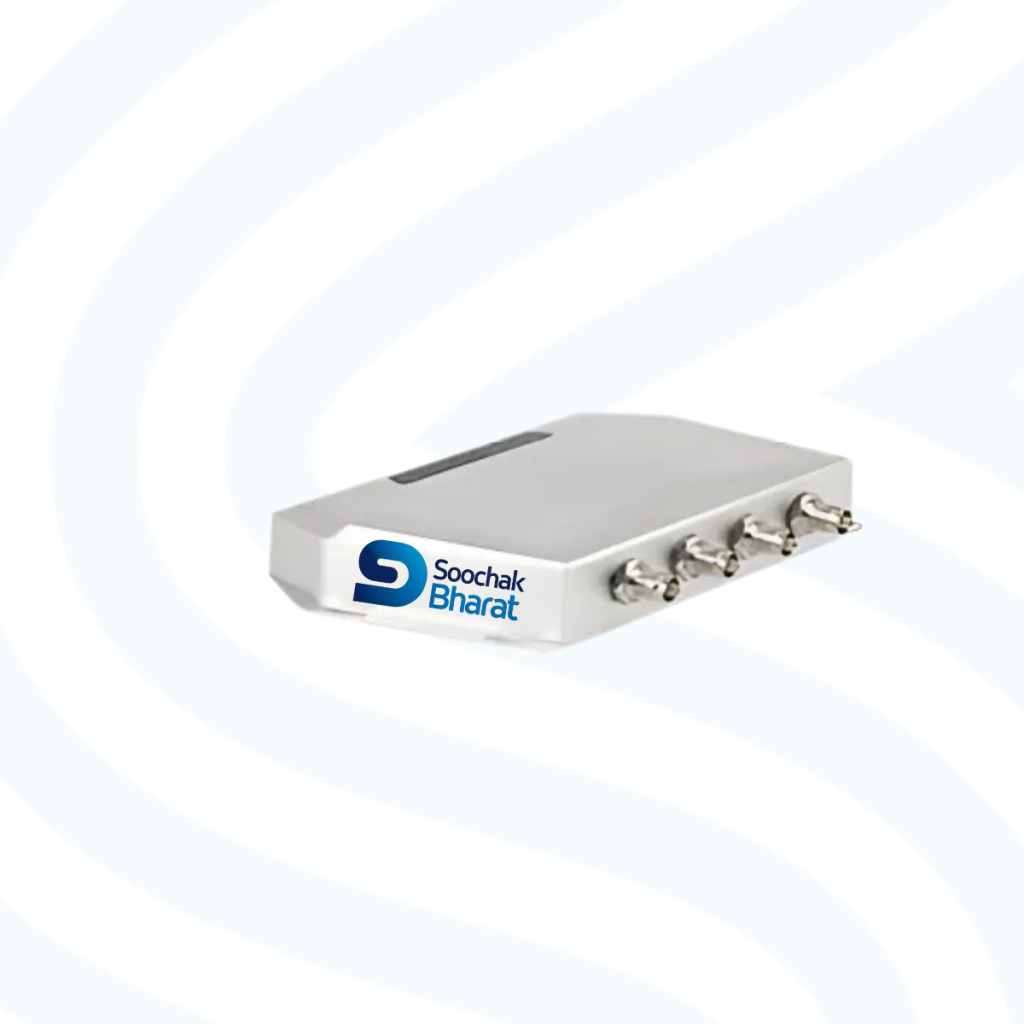

The SBR-U25-OS is a high-performance 4-port fixed RFID reader with TNC antenna interfaces, designed for fast and reliable tag reading. It features a built-in RK3568 embedded control board that supports both Linux and Android systems, and allows for custom app development—making it highly adaptable to diverse industrial applications. With rapid polling, efficient signal processing, and stable multi-antenna performance, it delivers high-speed, accurate reads even in dense environments. Commonly used in file tracking, asset management, access control, customs, electronic ticketing, and warehouse operations, the SBR-U25-OS offers robust functionality and strong communication capabilities—making it an ideal choice for RFID integration projects under Soochak Bharat
Features & Benefits :
- Flexible label data filtering for accurate tag identification
- Built-in RK3568 control board for industrial-grade processing
- Flexible label data filtering for accurate tag identification
- Dense tag reading with anti-interference optimization
- Fast multi-tag reading with anti-collision algorithm
- RSSI support for signal strength monitoring
- Rich communication interfaces: HDMI, Type-C USB, RJ-45, RS232, RS485, Wi-Fi, Bluetooth, 4G
- Supports PoE (Power over Ethernet) input
- Connects up to 4 external antennas via TNC ports
- 4 opto-isolated inputs and 4 relay outputs for I/O integration
Applications:
- File and Document Management
- Asset and Inventory Tracking
- Access Control Systems
- Warehouse & Logistics
- Library and Archive Management
Technical Specifications
| Physical Parameter | |
|---|---|
| Dimensions (in mm) | 213mm X 125mm X 37.5mm |
| Colour | White |
| Weight | 1.3 Kg approx. |
| Packaging Material | Aluminium |
| UHF Technical Parameters | |
| Protocol | EPC Class 1 Gen2 (ISO 18000-6C) |
| Features | Supports dense reading and writing, multi-tag recognition, label data filtering, RSSI support, and signal strength detection. |
| CPU | Processor: RK3568, quad-core 64-bit Cortex-A55 Speed: 2.0 GHz |
| Memory | RAM: 2GB Storage: 16GB eMMC (embedded flash storage) |
| Operating Frequency | China (GB Standard):
Europe (ETSI Standard):
India (TEC-Compliant):
North America (FCC Standard):
|
| Power Supply | 9 to 30 V DC |
| Transmitting Power | 33dBm ±1dB (Software adjustable) |
| Operating Mode | Supports Broadcasting FM (FHSS) or fixed frequency, configurable via software. |
| Output Power Adjustment | 1 dB step walking |
| Modulation | DSB-ASK |
| Read Range | Up to 10 m |
| Antenna | 4 TNC antenna interface |
| Continuous Tag Writing Distance (EPC Code) | ≥5 m (depends on tag chip performance); writing power exceeds 90% in a non-interference environment. |
| Communication Interfaces | TCP/IP, RS232, RS485, optional Wiegand 26/34 interface |
| IO | 2 opto-isolated inputs and 2 opto-isolated outputs (GPIO) |
| Pilot Lamp | 1-channel power supply status light 1 system operation status indicator 1-channel communication activity light 4-port UHF antenna interface status LEDs |
| Relay | 4 relays |
| Operating System | Android, Linux |
| Display Interface | HDMI Joggle |
| Environmental Parameters | |
| Operating Temperature | -20°C to +70°C |
| Operating Voltage | DC, 9-30 V |
| Storage Temperature | -40℃ to +85℃ |
Specs Sheet
| Sr. No. | Type | Description | Download |
|---|---|---|---|
| 1 | Datasheet | Google Drive link | Download Pdf |
