Description
Description

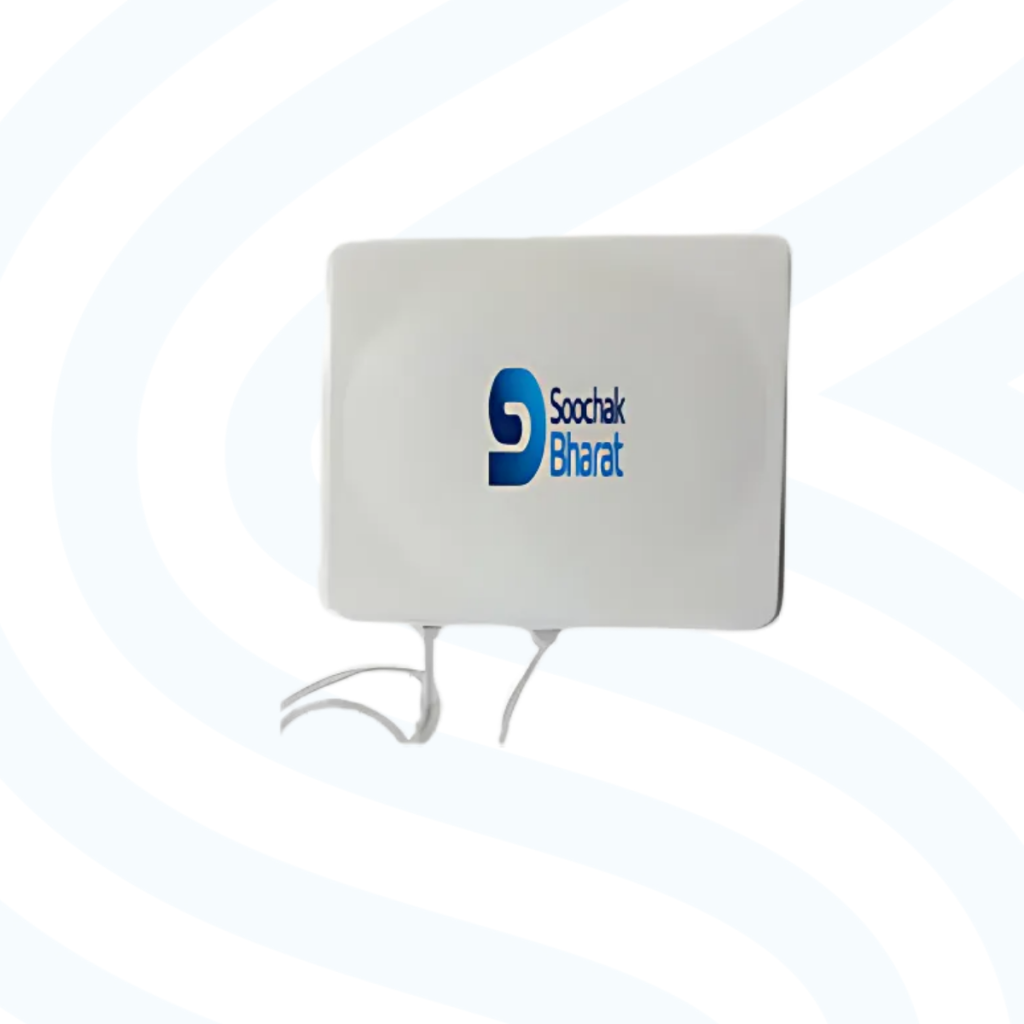

SBI-U2506 is a high-performance UHF RFID reader with an integrated antenna, supporting the ISO18000-6C protocol. It offers optional frequencies of 928 MHz and ETSI 865–868 MHz, with adjustable output power up to 33 dB ±1 dB. Featuring a sleek design, long read range, fast speed, and high accuracy, it is easy to install and ideal for applications like logistics, access control, anti-counterfeiting, and smart manufacturing.
Features & Benefits :
- Supports label data filtering
- Optimized for dense tag reading
- Enables fast multi-tag recognition
- RSSI support for signal strength detection
- 6 dBi circular polarized inbuilt antenna (up to 10m range)
- External antenna port for dual-mode use (optional)
- Interface options: Ethernet, RS232, RS485, Wiegand
- I/O: 2 opto-isolated inputs, 2 relay outputs
- Reliable, weather-resistant circuit design
Applications :
- Logistics & Supply Chain Management
- Access Control & Security Systems
- Anti-Counterfeiting Solutions
- Smart Manufacturing & Process Automation
- Asset & Inventory Tracking
- Warehouse & Storage Management
- Vehicle & Toll Gate Identification
Technical Specifications
Technical Specifications
| Physical Parameter | |
|---|---|
| Dimensions (in mm) | 133mm X 133mm X 31.5mm |
| Colour | White |
| Weight | 0.5 Kg approx. |
| Packaging Material | ABS Plastic |
| Protection Level | IP65 |
| UHF Technical Parameters | |
| Protocol | EPC Class 1 Gen2 (ISO 18000-6C) |
| Features | Supports dense reading and writing, multi-tag recognition, label data filtering, RSSI support, and signal strength detection. |
| Operating Frequency | 860–960 MHz |
| Power Supply | 9 to 12 V DC |
| Transmitting Power | 33dBm±1dB Software adjustable |
| Operating Mode | Fixed Frequency or Frequency Hopping (optional); supports Standalone and Dense Reader Modes |
| Output Power Adjustment | 1 dB step walking |
| Read Range | Up to 6 m |
| Antenna | Internal (6 dBi) |
| Antenna Specification | Embedded and rounded |
| Continuous Tag Writing Distance (EPC Code) | ≥2 m (dependent on tag chip performance); writing power exceeds 90% in a non-interference environment |
| Communication Interfaces | TCP/IP, RS232, RS485, GPIO, and optional Wiegand 26/34, along with other user-defined interfaces |
| Polarization | Circular |
| Indicators | Buzzer as an audio indicator |
| Mountable Accessories | Included |
| Relay | 2 relays |
| Environmental Parameters | |
| Operating Temperature | -20°C to +60°C |
| Operating Voltage | DC 9–12 V |
| Storage Temperature | -40°C to +85°C |
| Working Humidity | 10% to 95% RH No condensation |
Specs Sheet
Specs Sheet
| Sr. No. | Type | Description | Download |
|---|---|---|---|
| 1 | Datasheet | Google Drive link | Download Pdf |
