Description
Description

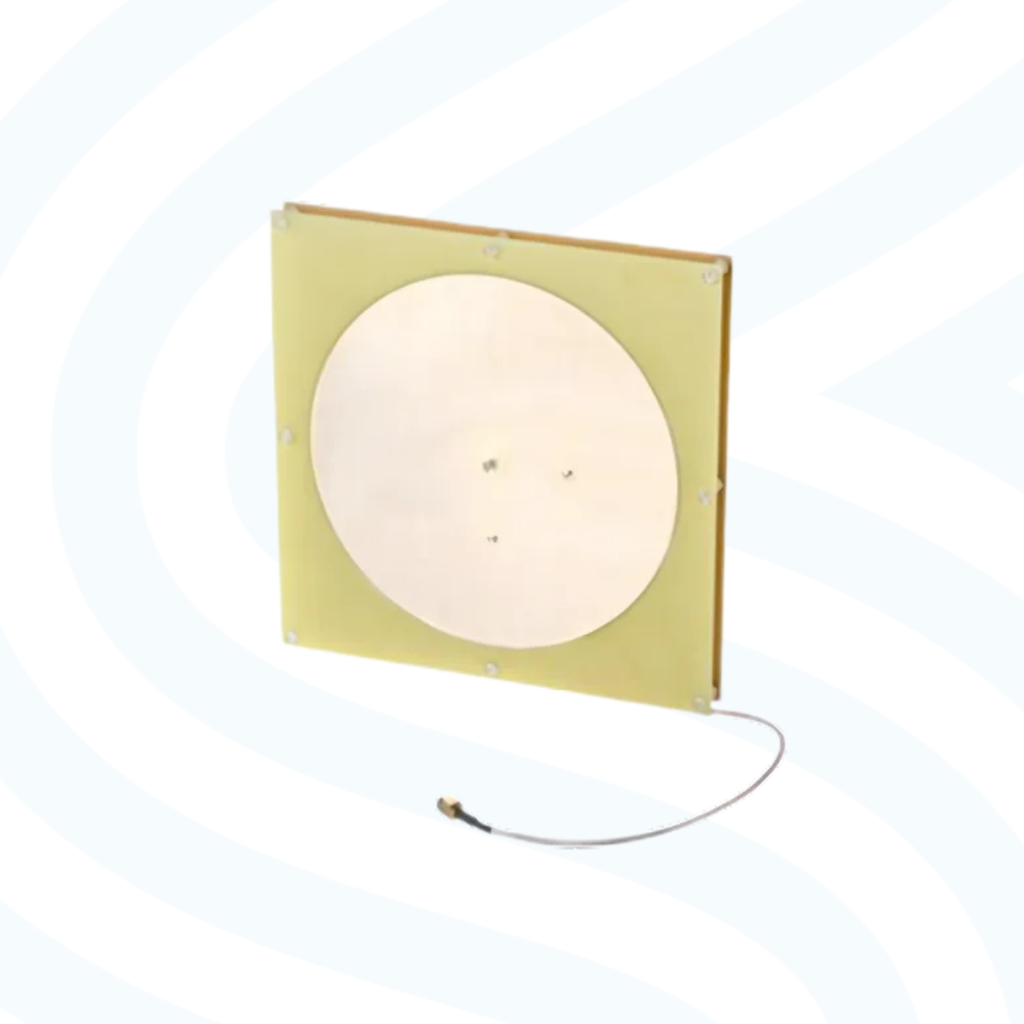

SBA-U2508C is an 8dBi UHF RFID antenna designed for circular-polarized performance across the 860–960 MHz band. With a compact gold-toned housing and 75° beamwidth on both axes, it ensures reliable tag capture in medium-range, directional applications. Built with reinforced structure and IPX4 moisture protection, it is suitable for standard indoor or sheltered outdoor deployments.
Features & Benefits :
- Frequency Range: 860–960 MHz (UHF)
- Gain: >8dBi for strong mid-range tag detection
- Circular Polarization for orientation-independent tag reading
- Beamwidth: 75° H / 75° V for focused coverage zones
- VSWR ≤1.3 for minimal signal loss
- Connector Type: SMA-5K
- Compact 190×190mm form, lightweight at 0.73 kg
- Material: Plastic + aluminum + FR4 composite body
- IPX4 rated for splash protection in semi-outdoor use
- Operating Temperature: -40°C to +85°C
Applications :
- Baggage tracking at airline or transit terminals
- Retail zone-based item monitoring
- RFID timing at sports event checkpoints
- Mid-range personnel access systems
- Shelf or crate tracking in small warehouses
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| Physical Parameter | |
| Dimensions | 190mm X 190mm X 18.6mm |
| Colour | White/Gold |
| Weight | 0.73 Kgs |
| Material | Plastic, Aluminium, FR4 |
| Waterproof Rating | IPX4 |
| UHF Technical Parameters | |
| Operating Frequency | 860-960 MHz |
| Gain | Up to 8 dBi |
| Beam Width | Horizontal: 75°, Vertical: 75° |
| VSWR | ≤1.3 |
| Polarization | Circular |
| Input Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Lightening Protection | DC Grounding |
| Connector Type | SMA-5K |
| Environmental Parameters | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 5％ to 95% RH No condensation |
