Description
Description

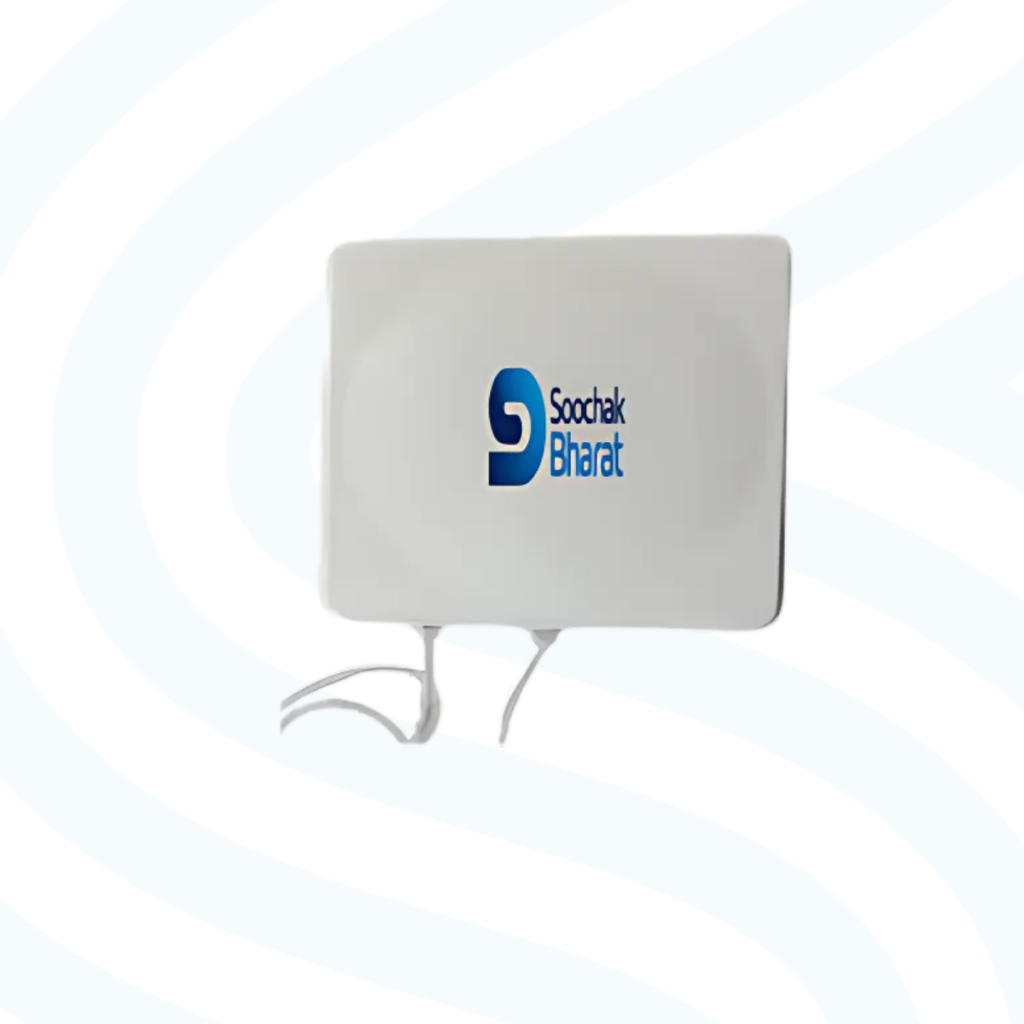

SBA-U2509C is a 9dBi UHF RFID antenna designed for circular-polarized applications within the 902–928 MHz frequency range. Its compact square form with reinforced sealing ensures durability in harsh outdoor or semi-industrial environments. With 70° beamwidth in both planes and IP67 waterproofing, it offers a reliable solution for wide-angle, mid-range RFID deployments.
Features & Benefits :
- Frequency Range: 902–928 MHz (UHF)
- Gain: >9dBi for solid mid-range tag reads
- Circular Polarization for consistent performance regardless of tag orientation
- Beamwidth: 70° (H-plane) / 70° (E-plane) for wide-area coverage
- VSWR ≤1.3 for stable signal efficiency
- Connector Type: N-type female (reverse-fed / side-fed)
- Reinforced ASA plastic and aluminum body for strength and weather resistance
- IP67 Rated – fully sealed against dust and water
- Operating Temperature: -40°C to +85°C
- Bracket installation with adjustable tilt angle
Applications :
- Warehouse dock doors
- Retail stockroom monitoring
- Access control points
- Library or archive exits
- 3PL loading bays
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| Physical Parameter | |
| Dimensions | 258mm X 258mm X 36mm |
| Colour | White |
| Weight | 0.91 Kgs (Excluding Bracket) |
| Material | Engineering Plastic ASA, Aluminium |
| Waterproof Rating | IP67 |
| UHF Technical Parameters | |
| Operating Frequency | 902-928 MHz |
| Gain | Up to 9 dBi |
| Beam Width | Horizontal: 70°, Vertical: 70° |
| VSWR | ≤1.3 |
| Polarization | Circular |
| Input Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Lightening Protection | DC Grounding |
| Connector Type | N-50KFD (N-type Female Connector with External Threads) |
| Environmental Parameters | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 5％ to 95% RH No condensation |
