Description
Description

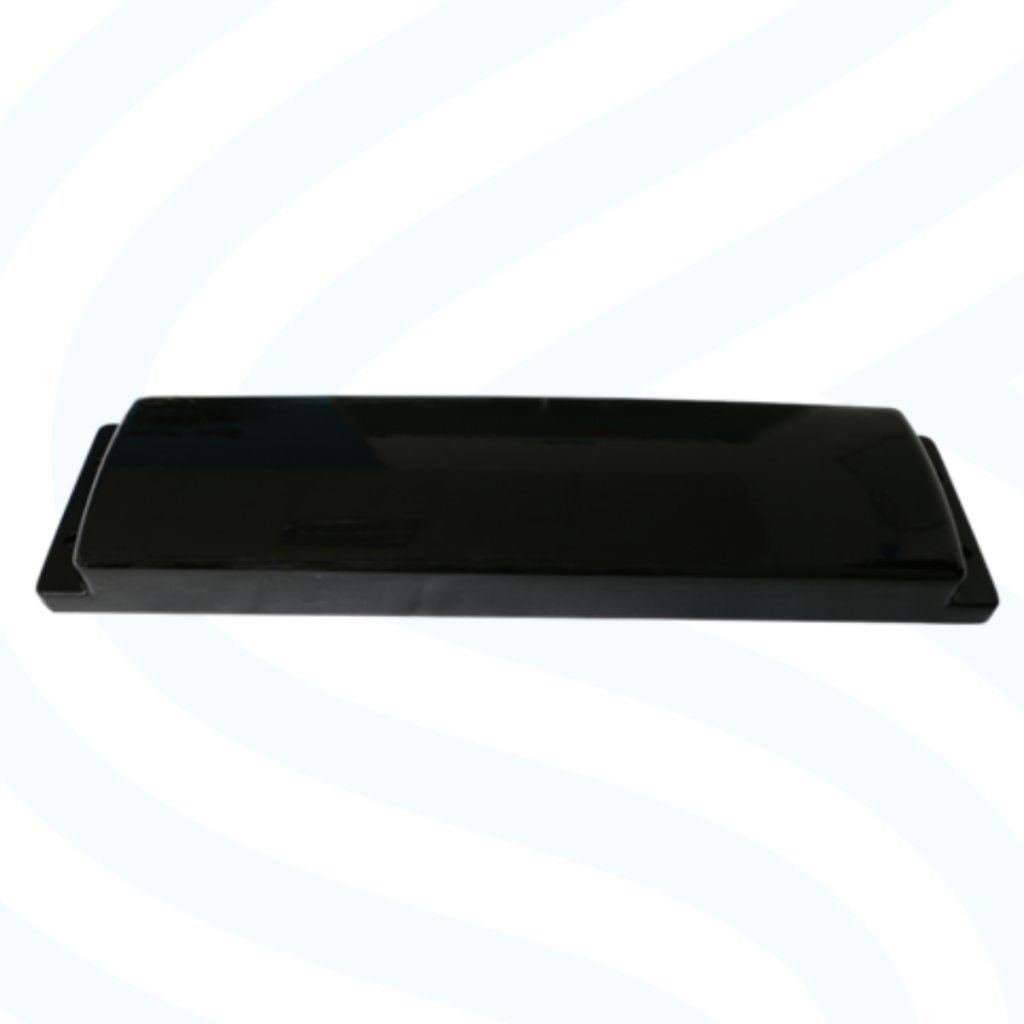

SBA-U2510T is a 10dBi linear polarized UHF RFID track antenna, tailored for applications in the 902–928 MHz band. With a wide 100° horizontal beam and robust fiberglass housing, it is ideal for conveyor belt systems, smart shelving, and focused item tracking. The antenna offers reliable mid- to long-range performance, making it a versatile choice for industrial and commercial RFID setups.
Features & Benefits :
- Frequency Range: 902–928 MHz
- Gain: 10dBi for enhanced mid- to long-range tag reading
- Linear Polarization for stable, orientation-specific detection
- Beamwidth: 100° horizontal / 30° vertical
- VSWR ≤1.3 for high signal efficiency
- Front-to-Back Ratio ≥12 for basic rear-side signal rejection
- Connector Type: N-type socket
- Max Input Power: 100W
- Durable fiberglass housing with IP65 waterproof rating
- Operating Temperature: -20°C to +60°C
- Lightning protection via DC grounding
Applications :
- Conveyor belt and assembly line RFID tracking
- Smart shelf and retail item identification
- Industrial automation and access control
- Mid-range asset tracking zones
- RFID-enabled logistics pathways
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| Physical Parameter | |
| Dimensions | 605mm X 155mm X 56mm |
| Colour | White/Black |
| Weight | 2.72 Kgs (Gross) |
| Packaging Dimensions | 630mm X 170mm X 100mm |
| Material | Fiberglass |
| Waterproof Rating | IP65 |
| UHF Technical Parameters | |
| Operating Frequency | 902-928 MHz |
| Gain | Up to 10 dBi |
| Beam Width | Horizontal: 100°, Vertical: 30° |
| VSWR | ≤1.3 |
| Front Back Ratio | ≥20 |
| Polarization | Linear |
| Input Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Lightening Protection | DC Grounding |
| Connector Type | N-Type Socket |
| Environmental Parameters | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 5％ to 95% RH No condensation |
Specs Sheet
Specs Sheet
| Sr. No. | Type | Description | Download |
|---|---|---|---|
| 1 | Datasheet | Google Drive link | Download Pdf |
