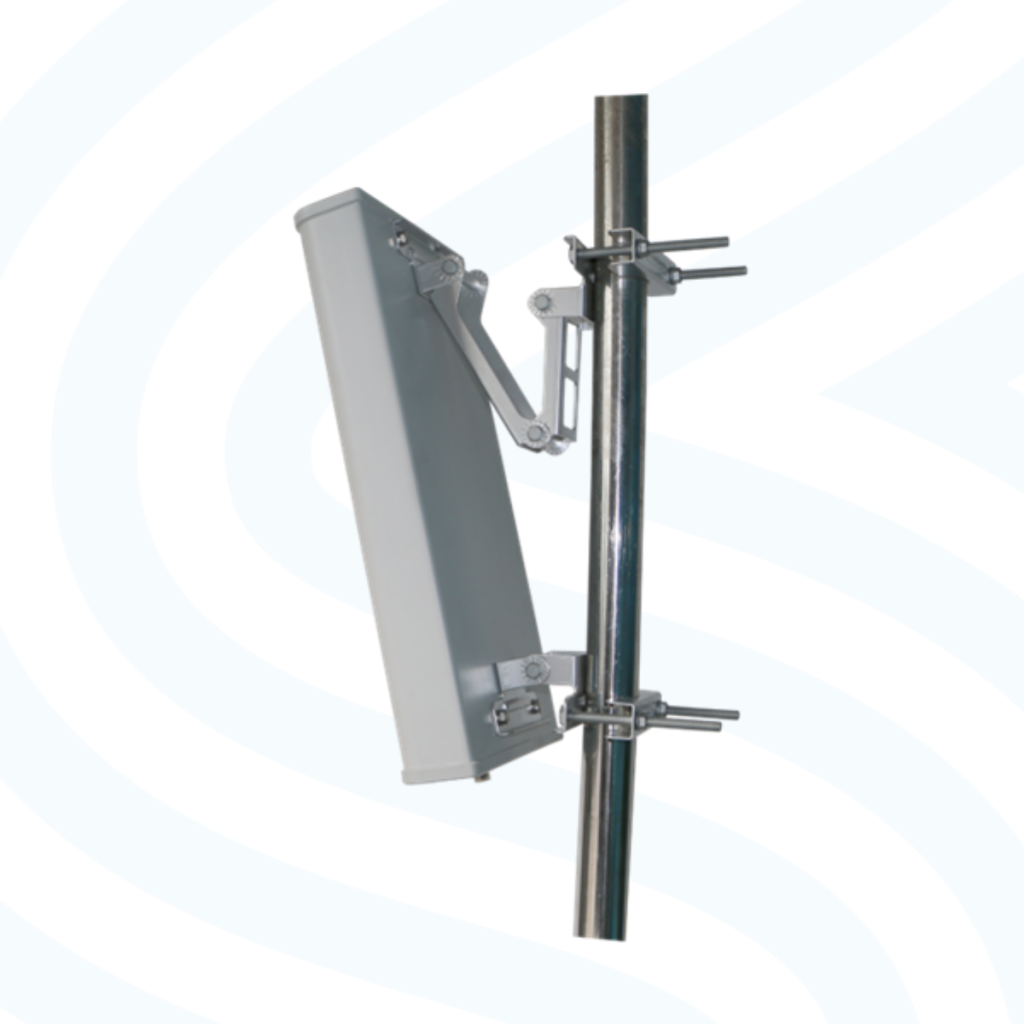

SBA-U2515PN is a high-gain 15dBi vertically polarized UHF panel antenna designed for wideband applications across the 806–960 MHz frequency range. Engineered for long-distance, high-precision coverage, it features a durable aluminum build, IP65-rated protection, and strong directional performance. Ideal for robust outdoor installations in wireless communication and RFID infrastructure
Features & Benefits :
- Frequency Range: 806–960 MHz
- Gain: 15dBi for long-range and high-strength signal transmission
- Vertical Polarization for consistent signal alignment
- Beamwidth: 70° horizontal / 30° vertical for directional coverage
- VSWR ≤1.5 for optimal signal efficiency
- Front-to-Back Ratio ≥20 to minimize backward interference
- Connector Type: N-type socket
- Max Input Power: 100W
- Rugged aluminum housing with IP65 waterproof rating
- Operating Temperature: -20°C to +60°C
- Lightning protection via built-in DC grounding
- Mounts on poles (Φ40–100mm) and withstands winds up to 50m/s
Applications :
- Long-range RFID and wide-area wireless systems
- Industrial connectivity and IoT networks
- Smart city and infrastructure monitoring
- Vehicle tracking and access control
- Outdoor telemetry and broadband transmission
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| Physical Parameter | |
| Dimensions | 1200mm X 280mm X 80mm |
| Colour | White/Black/Grey |
| Weight | 7.5 Kgs (Gross) |
| Packaging Dimensions | 1250mm X 345mm X 220mm |
| Material | Aluminium |
| Pole Diameter | φ40-100mm |
| Waterproof Rating | IP65 |
| Maximum Wind Resistance | 50 m/s |
| UHF Technical Parameters | |
| Operating Frequency | 806-960 MHz |
| Gain | Up to 15 dBi |
| Beam Width | Horizontal: 70°, Vertical: 30° |
| VSWR | ≤1.5 |
| Front Back Ratio | ≥20 |
| Polarization | Vertical |
| Input Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Lightening Protection | DC Grounding |
| Connector Type | N-Type Socket |
| Environmental Parameters | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 5％ to 95% RH No condensation |
