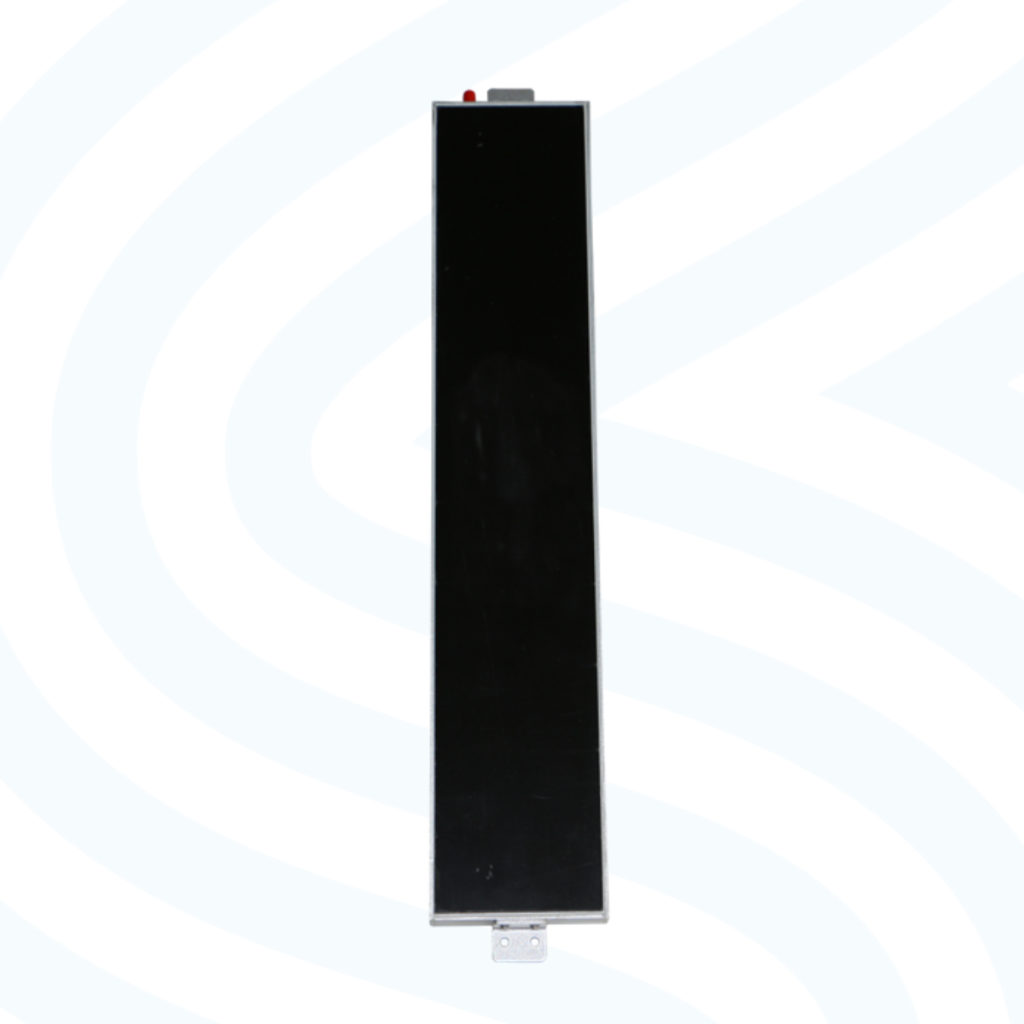

5dBi Flat Antenna

Description

SBA-U2505F is a 5dBi linear polarized UHF RFID antenna designed for short- to mid-range applications within the 902–928 MHz frequency band. Its wide 90° horizontal beam makes it ideal for broad area coverage, while the slim aluminum body and ear-mount design ensure quick and space-efficient installation. Suitable for indoor use or controlled outdoor environments where tag orientation is fixed.

Features & Benefits :

• Frequency Range: 902–928 MHz
• Gain: 5dBi for stable mid-range coverage
• Linear Polarization for controlled, fixed-orientation tag reading
• Beamwidth: 90° horizontal / 35° vertical
• VSWR ≤1.5 ensures efficient signal transfer
• Front-to-Back Ratio ≥20 reduces unwanted reflections
• Connector Type: SMA socket
• Max Input Power: 100W
• Lightweight aluminium build with ear-mount installation
• Operating Temperature: -20°C to +60°C
• Integrated DC grounding for lightning protection

Applications :

• Smart shelf and POS systems in retail
• Controlled-access RFID checkpoints
• Conveyor belt item tracking
• Workstation-level inventory monitoring
• Indoor asset tracking in compact zones
