Description
Description

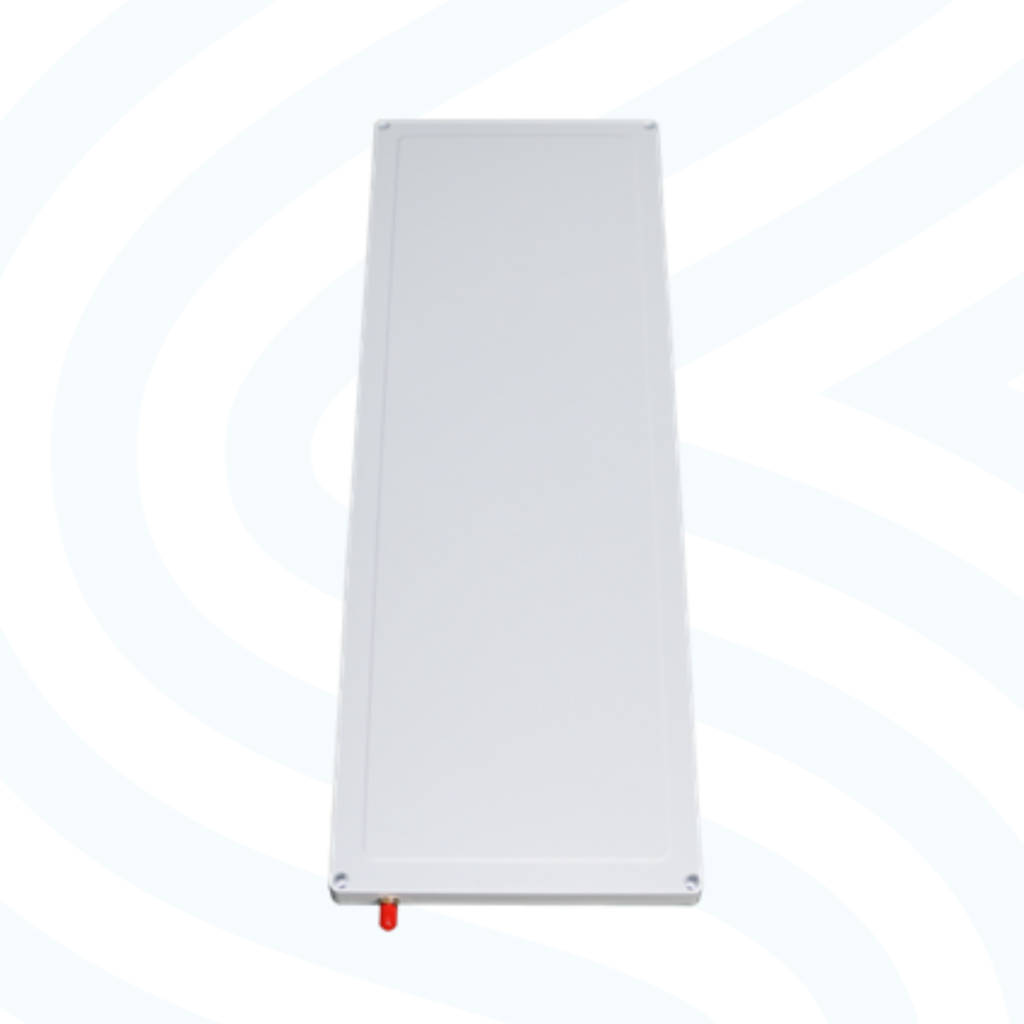

SBA-U2508FC is an 8dBi circularly polarized UHF RFID antenna optimized for the 902–928 MHz frequency band. Engineered for stable mid-range performance, it features a low-profile ABS design, IP65-rated weather protection, and moderate beamwidth angles that make it ideal for applications where tag orientation may vary. Whether used indoors or outdoors, it delivers consistent reading accuracy in access control, retail, logistics, and asset tracking environments.
Features & Benefits :
- Frequency Range: 902–928 MHz
- Gain: 8dBi
- Circular Polarization for reliable multi-angle tag reading
- Beamwidth: 35° horizontal / 65° vertical
- VSWR ≤1.4
- SMA Connector, 100W max input power
- IP65-rated ABS enclosure
- Operating Temperature: -20°C to +60°C
- Built-in DC grounding for lightning protection
Applications :
- RFID portals for inventory or personnel tracking
- Retail shelving and smart display systems
- Access control at gates and doorways
- Warehouse and logistics item tracking
- Outdoor asset or equipment monitoring
Technical Specifications
Technical Specification
| Physical Parameter | |
|---|---|
| Dimensions | 453mm X 163mm X 20mm |
| Colour | White |
| Weight | 1.2 Kgs (Gross) |
| Packaging Dimensions | 49mm X 22mm X 3cm |
| Material | ABS |
| IP Rating | IP 65 |
| UHF Technical Parameters | |
| Operating Frequency | 902–928 MHz |
| Gain | Up to 8 dBi |
| Beam Width | Horizontal: 35°, Vertical: 65° |
| VSWR | ≤ 1.4 |
| Front Back Ratio | ≥ 20 |
| Polarization | Circular |
| Input Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Lightening Protection | DC Grounding |
| Connector Type | SMA Socket |
| Environmental Parameters | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40℃ to +85℃ |
| Working Humidity | 5％ to 95% RH (No condensation) |
Specs Sheet
Specs Sheet
| Sr. No. | Type | Description | Download |
|---|---|---|---|
| 1 | Datasheet | Google Drive link | Download Pdf |
